Cold Drawn Steel Wire for Stitching Machines (wooden cases)

ATM Srl offers a wide product range in accordance with the international norms EN 10016, EN 10263 and DIN 1654 as well as upon special requests.

Raw Material

C4C ÷ C10C low-carbon steel wire according to EN 10016 – EN 10263 – DIN 1654

Manufacturing process

Dry drawing

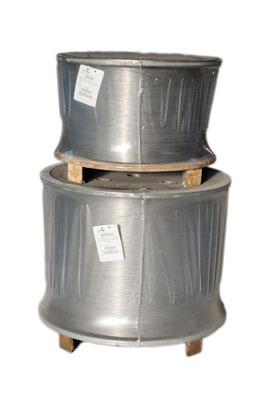

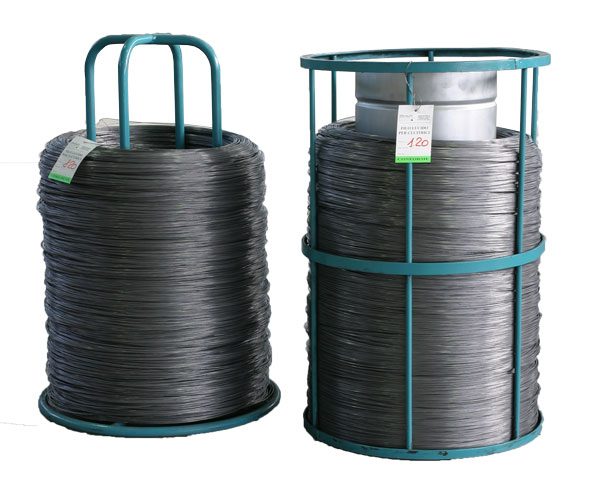

The pictures are indicative and show the possible packaging solutions available for the related products. Further customized packaging systems can be adopted upon specific request. ATM reserves the right to modify or implement the type of packaging in order to improve and optimize the product delivery standards.

Packaging

Diameter (mm) Tolerance Tensile strength N/mm2 Finishing
From 0,80 to 1,50 h9 700 – 1000 Bright
Packaging Weigh (kg) Dimensions (inside diameter x outside diameter x heigth)
Strapped Coils 300 - 1000 400 x 800 x 1000 mm
Spools 1000 – 1500 600 x 1100 x 600 mm
